Products: Controller Model CONT3

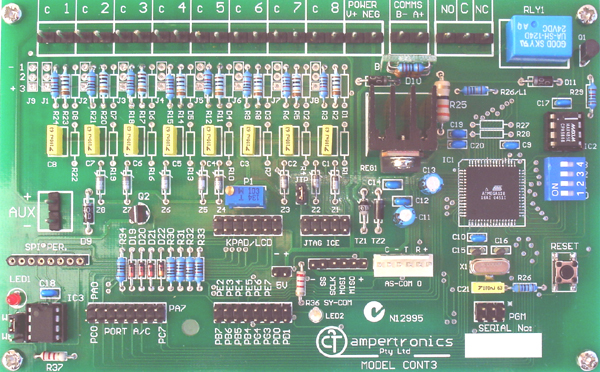

  • Atmel ATMega64 family Flash Micro-controller based module (64 pin TQFP)
  • Operating Voltage: 10 - 30V D.C., 50mA maximum current.
  • P.C.B. Dimensions: 100x160mm, ~35mm maximum height.
  • Inputs: 8 without expansion boards.
  • Outputs: 1 aux output 100mA max, 1 SPDT 1A relay (may be omitted from board).
  • All screw terminals are of the pluggable type.
  • 1 Asynchronous input/output port factory programmable from 300 to 9600 Baud. A bus interface board is required to connect to various peripherals (RS485 driver built in if required).
  • 1 Synchronous input/output port factory programmable up to 1Mbit transfer rate. A bus interface board is required to connect to various peripherals.
  • 1 Synchronous SPI expansion port factory programmable up to 1Mbit transfer rate.
  • 1x16 way ribbon cable header carrying 1x8 bits output port and 1x8bits I/O port. (Normally used to connect the inputs and outputs expansion board(s)).
  • 1xLCD and keypad interface 14 way ribbon cable header.
  • 1x4 ways DIP switch.
  • 1x16 way ribbon cable header carrying various interrupts and I/O bits.
  • 1x Serial EEPROM with write protect link.
NOTE: Appropriate communication module(s) required. Also some of the above features may not be usable under some circumstances.
