• Operating Voltage: 10-30V D.C.

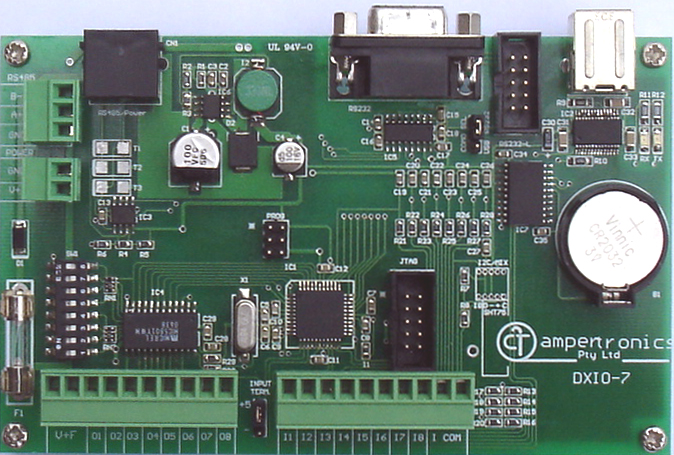

• P.C.B. Dimensions 140mm x 86mm x ~25mm
• Atmel Mega164p family (up to Mega1284) Flash Micro-controller based module (44Pin TQFP)
• 8 Analog or digital inputs (NC, NO or up to 30Vdc Input)
• Input termination resistors can be terminated to 0 Volts or +5 Volts (Pull up or pull down)
• 8 Open collector outputs, 500mA max each. (Please note that maximum continous current for the module should not exceed 2A).
• 8 DIP switches to set address or other parameters
• RS485, RS232 or USB on board
• Standard Atmel 6 pin programming connector to program Flash memory and JTAG for development
• Transorbs before and after the regulator


• **NEW** DXIO-71 and DXIO-72 are custom versions with FTDI MP3 player interface and Ethernet
