• Operating Voltage: 10 - 30V D.C., 20mA + relay coils current. (Application dependent).

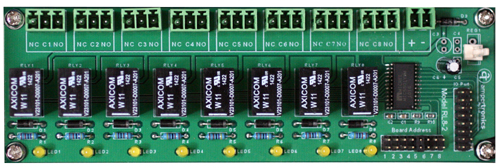

• P.C.B. Dimensions: 50x160mm, ~35mm maximum height, 8 relays module.
• All relays are SPDT with a 1A switching capacity. Gold plated contacts.
  (suitable for "dry switching", blind or AC control).
  3A switching capacity also available (Silver plated contacts for heavier load switching).
  All 3 relay contacts are available at the terminal blocks.
  All terminals are of the pluggable type.

• Suitable driver control board DXIO-8 or CONT3.
